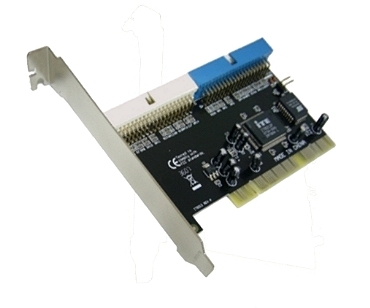

PCI ATA 133 Raid Controller



Features
  • Model No : PCA133GI
  • Chipset : ITE8212
  • Compliant with UDMA6 ATA133 or UDMA6 ATA100 Specifications
  • Compliant with ATA/ ATAPI-6 or ATA/ ATAPI-5 Specifications
  • Support maximum data transfer rate of 133mbps or 100mbps
  • Compliant with PCI Local Bus Specification Rev 2.2 or Rev 2.1
  • Compliant with PCI IDE Controller Specification Rev 1.0
  • Compliant with Programming Interface for Bus Mastering IDE Controller R1.0
  • Two independent Ultra ATA channels with 256/128 bytes buffer per channel
  • Connect upto four IDE/ATA devices (Coexist with on-board IDE ports)
  • Fully backwards compatible with Ultra ATA 100/66/33, EIDE/Fast ATA-2, IDE and ATAPI devices
  • Automatic performance tuning for each device attached
  • Support Ultra & Multi-Word DMA timing modes
  • Enhanced data integrity of transferred data with CRC (Cyclical Redundancy Check) protection and verification
  • Built-in 80pin cable detect circuitry
  • Support all ATAPI devices like HDD, CDROM, DVDROM, CDR, CDRW, LS120, MO, Tape & Zip
  • Support with Windows98SE/ME/2000/XP/NT4.0/XP 64bit/Vista

RAID Functions

  • Support Raid function 0, 1 and 0+1
  • Adjustable stripe size for RAID 0 and 0+1
  • Support co-exist RAID set and NON-RAID HDD
  • Allow HDDs with different sizes to be configured in a RAID set
  • RAID functions can be mixed in different RAID set
